Automatic Fiber Sending Machine

Automatic Fiber Sen

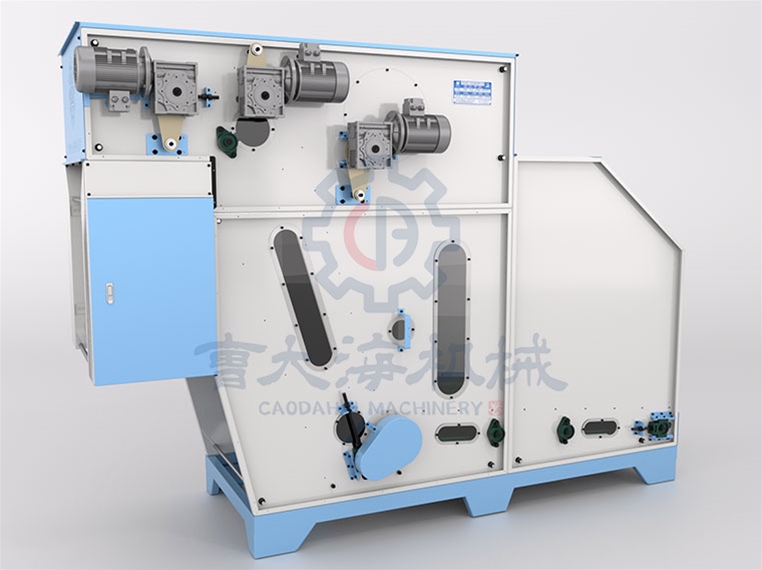

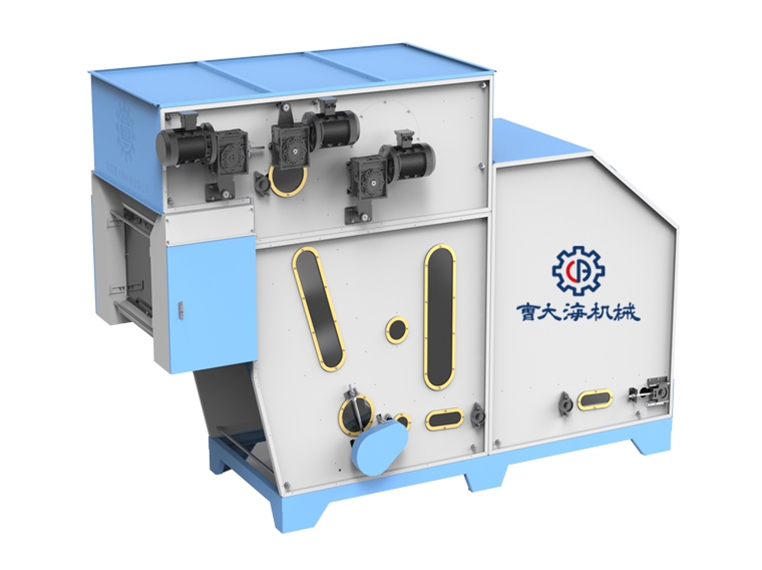

Automatic Fiber Sending Machine 3209

Automatic Fiber Sending Machine 3209



Main Specification

型号Item no

ZDSM-3209 B

电源电压Voltage

3相 380V50Hz

功率Power

4.07 kw

存棉量Cotton storage

150 kg

重量Weight

1200kg

外型尺寸Dimension

3200*1300*2350mm



Description

  • Bale openers are also called automatic cotton feeding machines and automatic fiber sending machines.
  • Adding Vibration Hopper, makes sending evenly, the equipment is mainly used to originally open packaged fiber cotton materials and then automatically send them to openers and carding machines, replacing manual cotton-feeding way, enhance the security.
  • Can put 100-350kg raw material into the conveyor one time, save labor cost. The raw material weight can design according to customer request.
  • Working gear roller all driven by single-motor, very convenience for maintenance.
  • CE certificate, use the world famous brand parts, in accordance with the International Electro technical Standard, meeting the safety regulations of Australia, EU, and North America.
  • The parts have a high level of standardization and generalization. Maintenance is simple and convenient. Metal plates adopt laser cutting, CNC bending and other advanced processing equipment. And their surface is processed with electrostatic plastic spraying technology, makes the machine pretty appearance and durable quality.
